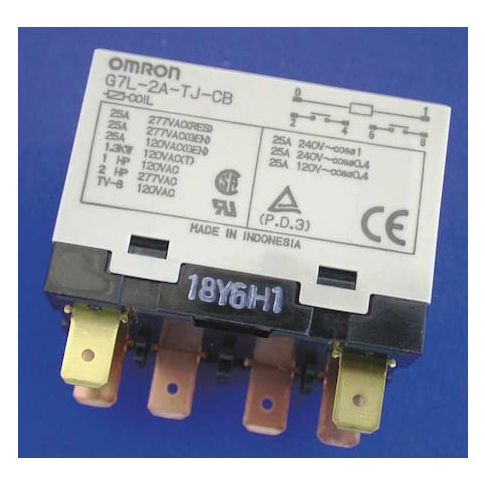

E-Bracket, Enclosed Power Relay, Square, 30 A, 6 Pins, Quick Connect MPN:G7L-2A-TJ-CB-DC12
E-Bracket, Enclosed Power Relay, Square, 30 A, 6 Pins, Quick Connect
The Omron E-Bracket Enclosed Power Relay is a reliable and efficient solution for a variety of applications, including industrial automation, commercial lighting, and HVAC systems. Its square base shape and semi-sealed design provide a compact and durable solution for power control. The relay's 30A current rating and 25A contact rating make it suitable for high-power applications, while its 12V DC coil voltage and 75 ohm coil resistance ensure efficient operation. With its quick-connect design and push-to-test method, the E-Bracket Enclosed Power Relay is easy to install and maintain, making it an ideal choice for a range of industries and applications.
Top product features:
- Enclosed design provides protection from the environment
- Quick-Connect electrical connection allows for easy installation and removal
- DPST-NO contact form enables switching of two circuits simultaneously with a single operation
Top product applications:
- Industrial control systems
- Motor control circuits
- Automated manufacturing equipment
Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 6, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 25 A @ 240V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style E-Bracket, Push-To-Test Method Test Button, Body Depth 1.32 in, Body Height 2.07 in, Body Width 1.4 in, Coil Resistance 75 ohm
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.30
- Package Height: 1.30
- Package Weight: 0.20
Product info last updated on March 8, 2026 11:35am UTC
Category: Industrial Electrical Controls and Automation
