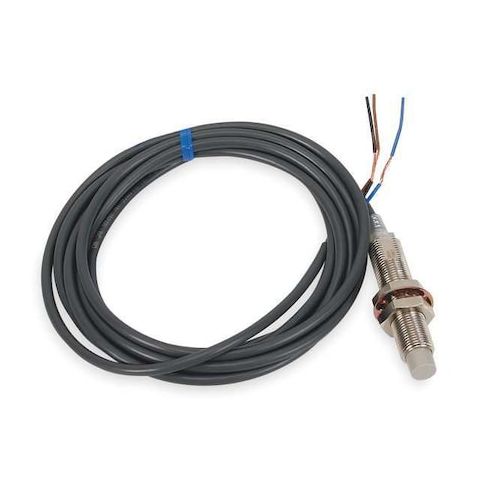

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E2E2-X10MY1-US
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded
The Omron Inductive Proximity Sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its cylindrical design and 18mm diameter make it ideal for use in tight spaces, while its 2m cable and 24-240V AC power requirement provide flexibility in installation. With a maximum detecting distance of 10mm and a high operating frequency of 25Hz, this sensor is suitable for use in industrial automation, robotics, and other applications where precision and speed are crucial. Its durable nickel-plated brass construction and IP67 rating ensure reliable performance in harsh environments.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces.
- Operating frequency of 25 Hz enables reliable detection of objects.
- Detecting distance of 10 mm allows for precise object detection.
Top product applications:
- Automotive Industry: The sensor's compact size and high operating temperature range make it suitable for use in automotive applications such as detecting metal objects in engine compartments or under the hood.
- Food Processing: The sensor's IP67 rating and ability to detect metal objects at a distance of 10mm make it ideal for use in food processing applications where cleanliness and accuracy are crucial.
- Industrial Automation: The sensor's 24-240V AC power requirement and 300mA current load make it suitable for use in industrial automation applications such as detecting metal objects on conveyor belts or in assembly lines.
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 24 to 240V AC, Unshielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.50
- Package Height: 1.20
- Package Weight: 0.40
Product info last updated on January 31, 2026 5:42am UTC
Category: Industrial Electrical Controls and Automation
