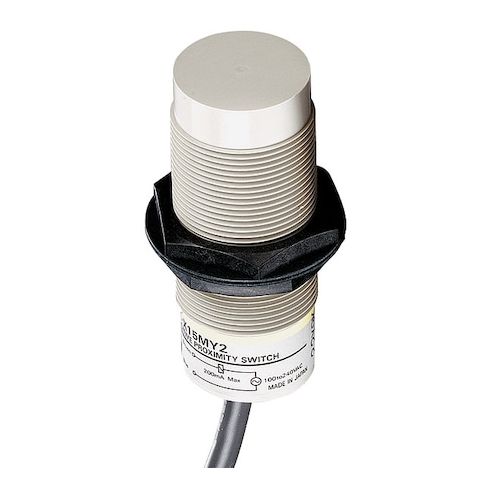

Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., Plastic, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E2K-X15ME1
Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., Plastic, 2 m, Bare Wire, 3 Wires, Unshielded
The Omron Capacitive Cylindrical Proximity Sensor is a versatile and reliable solution for detecting objects in industrial and commercial settings. With a maximum detecting distance of 15mm and a compact 30mm diameter, this sensor is ideal for applications where space is limited. Its 2m cable and 3-wire NPN output provide flexibility and ease of integration. Suitable for use in a variety of industries, including manufacturing, logistics, and food processing, this sensor offers improved efficiency and reduced downtime. Its IP66 rating and operating temperature range of 14-131°F ensure durability and reliability in harsh environments.
Top product features:
- Capacitive sensing technology allows the sensor to detect objects without physical contact.
- The sensor has a maximum detecting distance of 15 mm, enabling accurate detection of objects at close range.
- The output circuit is a 3-wire NPN type, providing a standard interface for easy integration with other devices.
Top product applications:
- Automatic Door Openers
- Conveyor Belt Monitoring
- Robotic Arm Control
Capacitive Cylindrical Proximity Sensor, Capacitive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, IP Rating IP66, Case Material Plastic, Length 41 mm, Operating Temp. Range 14 Degrees to 131 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.60
- Package Height: 2.80
- Package Weight: 0.45
Product info last updated on January 15, 2026 1:01am UTC
Category: Industrial Electrical Controls and Automation
