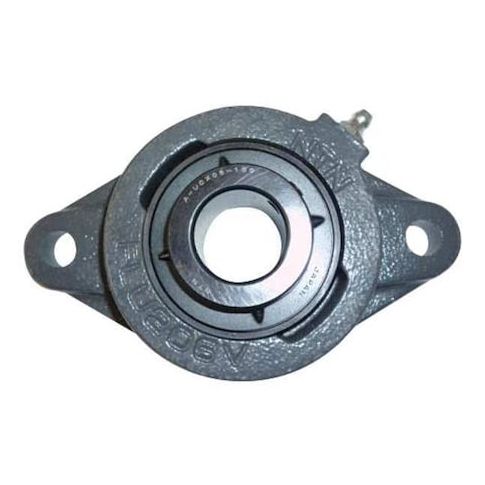

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw Locking MPN:UCFLU-3/4MFG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw Locking
The NTN 2-Bolt Flange Bearing is a reliable and versatile solution for a variety of applications, including industrial machinery, automotive, and aerospace. Its robust design features a 3/4 inch cylindrical bore and a radially loaded ball bearing insert made of alloy steel, ensuring smooth operation and extended lifespan. The bearing's double sealed closure and fixed expansion type provide superior protection against dust and moisture, while its cast iron housing and rhombus shape offer added strength and stability. Ideal for applications where high speeds and temperatures are present, this bearing can withstand up to 6,700 RPM and temperatures up to 250°F.
Top product features:
- Double sealed closure protects the bearing from dust and moisture
- Radial ball bearing design provides smooth and quiet operation
- Fixed expansion type ensures secure and consistent fit in applications
Top product applications:
- Heavy Duty Machinery
- Pumps and Compressors
- Industrial Conveyors
2 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UC204-012D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 6,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 13/32 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.70
- Package Height: 1.40
- Package Weight: 1.30
Product info last updated on March 21, 2026 7:46am UTC
Category: Bearings, V-belts and Power Transmission Equipment
