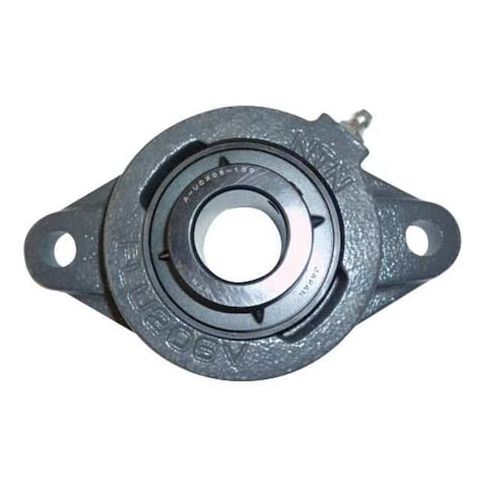

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:UCFLU-1MFG1
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
The NTN 2-Bolt Flange Bearing is a robust and reliable solution for heavy-duty applications. Its alloy steel bearing insert and cast iron housing ensure durability and resistance to extreme temperatures, from -40°F to 250°F. With a maximum speed of 5,900 RPM, it's ideal for high-velocity machinery. The double-sealed design and NLGI #3 equivalent lubricant keep the bearing running smoothly and quietly. Suitable for use in industrial settings, such as manufacturing, mining, and oil and gas operations, this bearing is a reliable choice for applications requiring precision and longevity. Its compact rhombus design also makes it a great fit for space-constrained environments.
Top product features:
- 2-Bolt design allows for secure mounting
- Double sealed closure protects against contamination and debris
- Cylindrical bore provides a smooth surface for rotating applications
Top product applications:
- Pump and motor mounting
- Gearbox and speedometer mounting
- Conveyor and roller bearing applications
2 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UC205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 3/4 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.70
- Package Height: 4.80
- Package Weight: 1.60
Product info last updated on February 27, 2026 10:28am UTC
Category: Bearings, V-belts and Power Transmission Equipment
