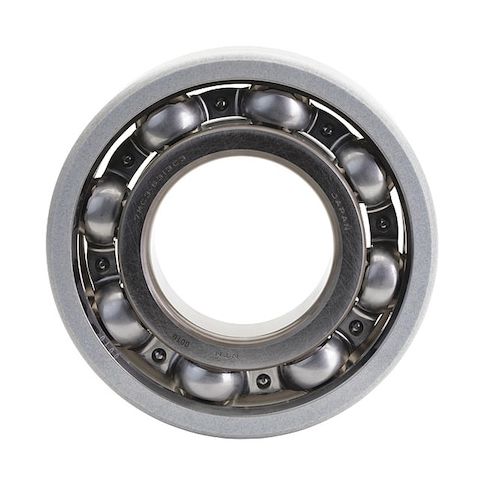

Radial Ball Bearing, 6316 Industry Number, Open, 80 mm Dia, Alloy Steel MPN:7MC3-6316C3
Radial Ball Bearing, 6316 Industry Number, Open, 80 mm Dia, Alloy Steel
The NTN Radial Ball Bearing 6316 is a high-performance bearing designed for heavy-duty applications. With a 80mm bore diameter and 170mm outside diameter, it provides a large load capacity and is suitable for use in industrial machinery, automotive, and construction equipment. The bearing features a chrome-plated finish and a pressed steel cage, ensuring smooth operation and long lifespan. Its alloy steel construction provides durability and resistance to wear and corrosion. Ideal for applications requiring high radial load capacity, such as gearboxes, pumps, and motors, this bearing offers reliable performance and minimal maintenance.
Top product features:
- Radial Ball Bearing design provides a high degree of rotational accuracy and stability.
- The bearing features a pressed steel cage that securely holds the balls in place, ensuring smooth operation and minimizing the risk of ball escape.
- The bearing has a dynamic radial load capacity of 123,000 N, allowing it to support heavy loads and withstand demanding applications.
Top product applications:
- Industrial machinery
- Automotive applications
- Heavy machinery equipment
Radial Ball Bearing, Bearing Industry Number 6316, Bore Diameter 80 mm, Closure Open, Outer Ring Width 39 mm, Outside Diameter 170 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, Ball Material Alloy Steel, Cage Type Pressed, Dynamic Radial Load Capacity 123,000 N, Fillet Radius 2.1 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material Not Available
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 7.50
- Package Height: 2.10
- Package Weight: 8.10
Product info last updated on March 8, 2026 4:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
