Cylindrical Roller Brg, 322, 110 mm Bore MPN:7MC3-NU322EGRBC3

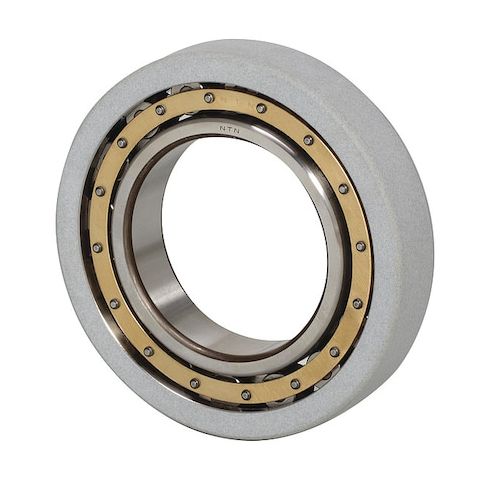

Cylindrical Roller Brg, 322, 110 mm Bore
This NTN Cylindrical Roller Bearing is designed for heavy-duty applications requiring high radial load capacity and smooth operation. Suitable for use in industrial machinery, gearboxes, and other equipment, it provides long-lasting performance and reduces maintenance needs. With a maximum speed of 3,700 RPM when lubricated with grease, it can handle demanding conditions. The bearing's alloy steel construction and brass cage ensure durability and resistance to wear. Its compact size and low weight make it ideal for space-constrained applications. This bearing is a reliable choice for applications in temperatures ranging from -40 to 120 degrees C.
Top product features:
- Cylindrical Roller Bearing design allows for high load capacity and smooth operation.
- Alloy Steel construction provides durability and resistance to corrosion.
- Grease and oil lubrication options enable the bearing to operate at high speeds.
Top product applications:
- Heavy Duty Industrial Equipment
- High-Speed Spindles and Motorized Tools
- Large Gearboxes and Transmissions
Cylindrical Roller Bearing, Bearing Industry Number 322, Bore Diameter 110 mm, Bore Type Cylindrical, Cage Material Brass, Closure Open, Inner Ring Outside Diameter 123 mm, Lubricant Material Grease, Oil, Maximum Speed 3,100 RPM Oil, 3,700 RPM Grease, Maximum Temperature 120 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outer Ring Inside Diameter 227 mm, Outside Diameter 240 mm, Overall Width 50 mm, Ring Material Alloy Steel, Roller Material Alloy Steel
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 10.00
- Package Height: 4.10
- Package Weight: 25.50
Product info last updated on February 21, 2026 12:43am UTC
Category: Bearings, V-belts and Power Transmission Equipment
