3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 25/32 in Dia, Stainless Steel, Set Screw

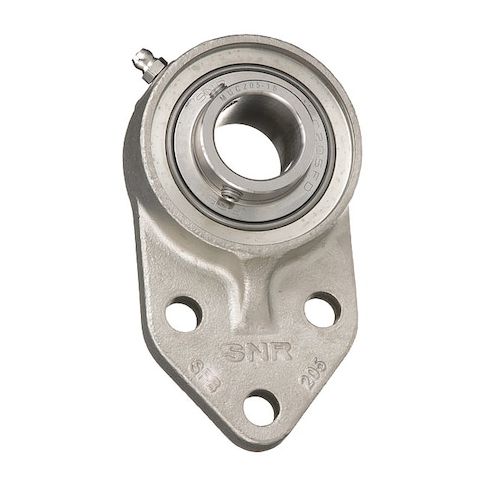

This 3 Bolt Flange Bearing from NTN is a robust and reliable solution for heavy-duty applications. Featuring a stainless steel housing and radial ball bearing insert, it provides excellent corrosion resistance and smooth operation. The bearing is double sealed for maximum protection against contaminants and is suitable for use in temperatures ranging from -20°C to 120°C. With a maximum speed of 5,900 RPM, it is ideal for use in industrial machinery, food processing equipment, and pharmaceutical manufacturing. Its compact design and fixed expansion type make it easy to install and maintain, ensuring optimal performance and longevity in demanding environments.
Top product features:
- Double sealed closure provides protection against environmental contaminants
- Bearing insert made of stainless steel for corrosion resistance
- Radial ball bearing design allows for smooth rotation and reduced vibration
Top product applications:
- Food Processing Machinery
- Pump and Valve Applications
- Automotive and Industrial Equipment
3 Bolt Flange Bearing, Back Side to Center Width 15 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Flange Bracket, Included Bearing SUC204, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 38.1 mm
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.60
- Package Height: 1.70
- Package Weight: 1.15
