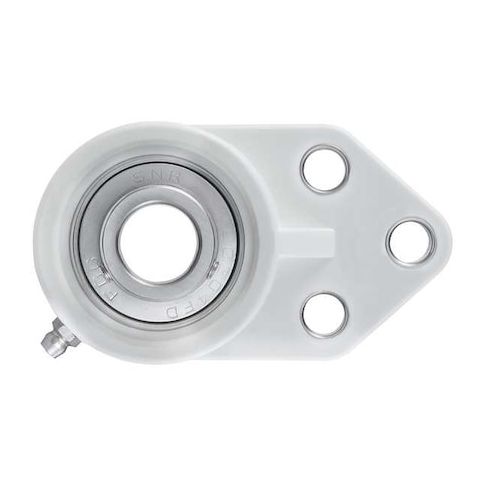

Flange Bearing, 3-Bolt, Ball, 1-7/16" Bore MPN:ZUCFBL207-23
Flange Bearing, 3-Bolt, Ball, 1-7/16" Bore
The NTN 3-Bolt Flange Bearing is a reliable and durable solution for various industrial applications. Its radial ball bearing insert is made of alloy steel, providing exceptional strength and resistance to wear and tear. The double-sealed design ensures long-lasting protection against dust and moisture, while the fixed expansion type and polymer housing ensure secure and stable operation. With a maximum speed of 3,700 RPM and a temperature range of -2 to 250°F, this bearing is suitable for use in a wide range of environments. Ideal for use in machinery, equipment, and manufacturing processes, this bearing provides smooth and efficient operation.
Top product features:
- This bearing features a double sealed closure to protect against contaminants.
- The bearing has a fixed expansion type, allowing for secure installation and reliable performance.
- The bearing is lubricated with FDA/USDA-H1 solid grease, making it suitable for use in food processing and other applications requiring high sanitation standards.
Top product applications:
- Heavy Duty Industrial Equipment
- Food Processing Machinery
- Aerospace Industry Applications
3 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing ZUCFBL207-23, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -2 Degrees F, Mount Hole Center-to-Center Height 1 1/4 in, Number of Mount Holes 3
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.20
- Package Width: 5.20
- Package Height: 3.50
- Package Weight: 1.80
Product info last updated on February 16, 2026 8:47pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
