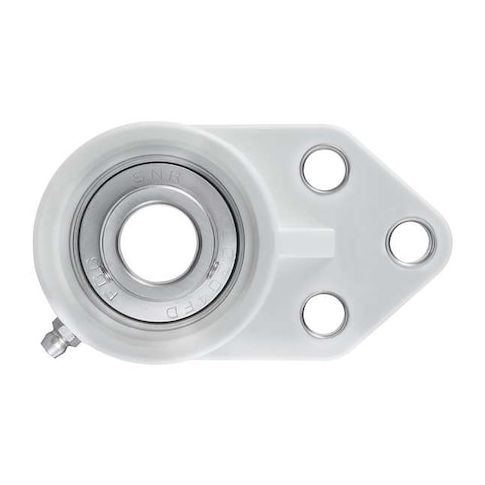

3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 25 mm Dia, Thermoplastic, Set Screw MPN:SUCFBL205
3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 25 mm Dia, Thermoplastic, Set Screw
The NTN 3-Bolt Flange Bearing is a reliable and versatile solution for heavy-duty applications requiring high-speed and high-temperature performance. With a stainless steel housing and insert, this bearing is ideal for use in food processing, pharmaceutical, and chemical industries where corrosion resistance is crucial. Its double-sealed design and FDA/USDA-H1 compliant lubricant ensure a long lifespan and meet strict regulatory standards. Suitable for applications such as machinery, equipment, and conveyor systems, this bearing offers a compact design with a 25mm bore and 41.6mm back side to center width, making it easy to integrate into various machinery and equipment configurations.
Top product features:
- Double Sealed Closure
- Fixed Expansion Type
- FDA/USDA-H1 Solid Grease Lubrication
Top product applications:
- Industrial food processing equipment
- Pump and valve applications in chemical processing plants
- High-speed machinery in the medical device industry
3 Bolt Flange Bearing, Back Side to Center Width 41.6 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Flange Bracket, Included Bearing SUC205, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 41.3 mm
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.25
- Package Height: 1.75
- Package Weight: 0.75
Product info last updated on February 10, 2026 9:48pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
