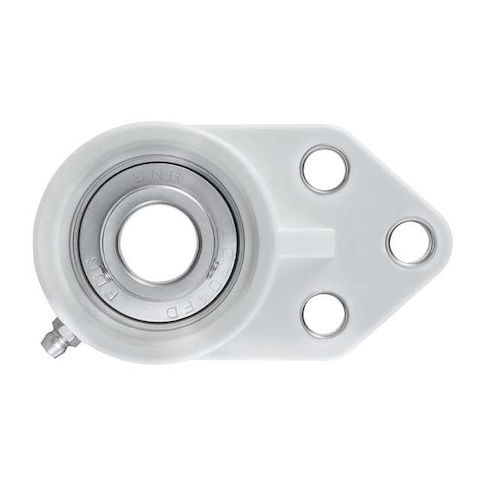

3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 35 mm Dia, Thermoplastic, Set Screw MPN:SUCFBL207
3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 35 mm Dia, Thermoplastic, Set Screw
The NTN 3-Bolt Flange Bearing is a high-performance bearing designed for heavy-duty applications. Its stainless steel construction and FDA/USDA-H1 compliant lubricant make it ideal for use in food processing, pharmaceutical, and other sanitary environments. The bearing's radial ball design and double sealed closure provide long-lasting protection against contaminants and wear. With a maximum speed of 3,700 RPM and a temperature range of -20 to 120 degrees C, this bearing can handle demanding conditions. Suitable for use in machinery, equipment, and other applications where reliability and cleanliness are crucial.
Top product features:
- Three-Bolt Flange design for secure mounting
- Double Sealed closure to prevent contamination
- Fixed Expansion Type to maintain consistent bearing performance
Top product applications:
- Food Processing Machinery
- Automotive Steering Systems
- Pumps and Compressors
3 Bolt Flange Bearing, Back Side to Center Width 21.7 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 35 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Flange Bracket, Included Bearing SUC207, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 50.8 mm
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 2.25
- Package Weight: 1.65
Product info last updated on April 5, 2026 8:02pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
