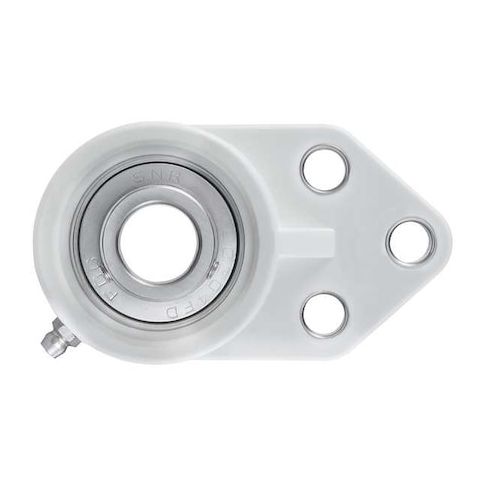

3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Thermoplastic, Set Screw MPN:SUCFBL206
3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Thermoplastic, Set Screw
This 3-bolt flange bearing is a reliable solution for applications requiring high precision and durability. The stainless steel housing and bearing insert ensure resistance to corrosion and wear, while the double sealed closure protects against contaminants. With a maximum operating temperature of 120°C and a minimum operating temperature of -20°C, this bearing can handle a wide range of environments. Suitable for use in food processing, pharmaceutical, and other sanitary applications, this bearing is also ideal for high-speed machinery and equipment in industries such as aerospace, automotive, and manufacturing. Its compact design makes it easy to integrate into existing systems.
Top product features:
- Three-bolt flange design for secure mounting
- Double sealed closure for protection against contaminants
- FDA/USDA-H1 solid grease lubricant for compliance with food-grade standards
Top product applications:
- Heavy machinery manufacturing
- Automotive parts industry
- Food processing equipment
3 Bolt Flange Bearing, Back Side to Center Width 19.3 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Flange Bracket, Included Bearing SUC206, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 47.6 mm
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 1.75
- Package Weight: 1.10
Product info last updated on February 5, 2026 2:56am UTC
Category: Bearings, V-belts and Power Transmission Equipment
