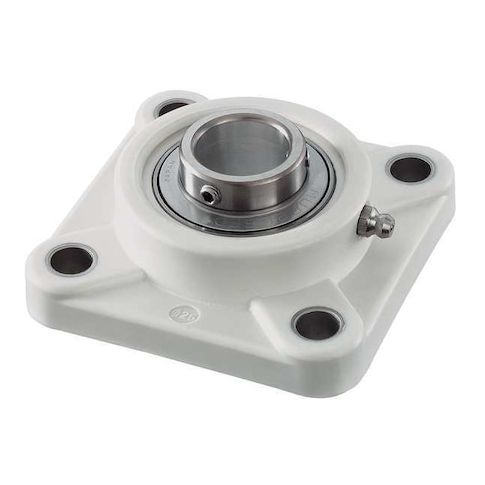

Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore MPN:ZUCFPL206-20
Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore
This NTN 4-Bolt Flange Bearing is a reliable and versatile solution for various industrial applications. Its alloy steel bearing insert and radial ball design provide smooth operation and long-lasting durability, while the double-sealed closure protects against contamination and debris. Suitable for use in temperatures ranging from -2 to 250°F and speeds up to 4,300 RPM, this bearing is ideal for applications such as pumps, gearboxes, and conveyor systems. Its compact square housing and fixed expansion type ensure secure installation and minimal maintenance, making it a valuable component for manufacturers and maintenance professionals alike.
Top product features:
- Double sealed closure to protect the bearing from contaminants and debris
- Radial ball bearing design for smooth and quiet operation
- FDA/USDA-H1 solid grease lubricant for food-grade and sanitary applications
Top product applications:
- Pump and motor mounting
- Gearbox and transmission mounting
- Conveyor and machinery mounting
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing ZUCFPL206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -2 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in, Number of Mount Holes 4, Overall Height 4 13/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 5.50
- Package Height: 2.40
- Package Weight: 1.41
Product info last updated on March 24, 2026 6:12am UTC
Category: Bearings, V-belts and Power Transmission Equipment
