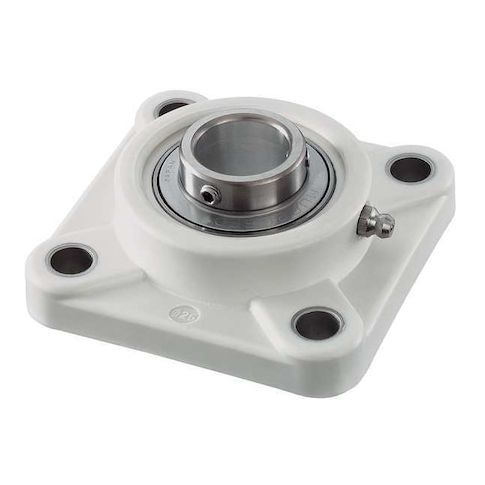

4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Polymer, Set Screw Locking MPN:ZUCFPL204-12
4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Polymer, Set Screw Locking
The NTN 4-Bolt Flange Bearing is a reliable and versatile solution for a wide range of applications, including food processing, pharmaceutical, and chemical manufacturing. Its double-sealed design and FDA/USDA-H1 solid grease ensure maximum protection against contamination and corrosion. The bearing's fixed expansion type and alloy steel insert provide superior strength and durability, while its 3/4in cylindrical bore and square housing make it easy to integrate into existing systems. With a maximum temperature of 250°F and a minimum temperature of -2°F, this bearing can handle extreme temperatures and is ideal for use in high-speed machinery, pumps, and conveyor systems.
Top product features:
- Double sealed closure for protection against contaminants
- Radial ball bearing design for smooth rotation and reduced friction
- FDA/USDA-H1 solid grease lubrication for food-grade and sanitary applications
Top product applications:
- Pump and motor assemblies
- Conveyor systems
- Gearboxes
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing ZUCFPL204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -2 Degrees F, Mount Hole Center-to-Center Height 2 33/64 in, Number of Mount Holes 4, Overall Height 3 3/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 0.75
Product info last updated on April 10, 2026 8:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
