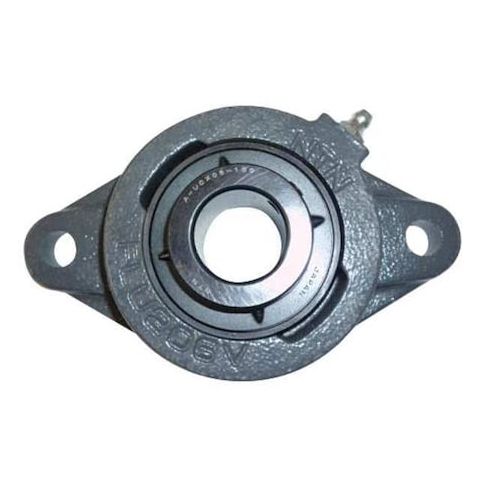

2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 25 mm Dia, Cast Iron, Set Screw MPN:UCFLU-25
2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 25 mm Dia, Cast Iron, Set Screw
The NTN 2-Bolt Flange Bearing is a robust and reliable solution for industrial applications, featuring a radial ball bearing insert and cast iron housing. Its 25mm cylindrical bore and double sealed design ensure smooth operation and extended lifespan. Suitable for use in temperatures ranging from -30°C to 120°C, this bearing can withstand demanding conditions. With a maximum speed of 5,900 RPM, it's ideal for applications requiring high rotational speeds, such as in machinery, equipment, and manufacturing processes. Its compact design and fixed expansion type make it easy to integrate into existing systems, providing a reliable and efficient solution for various industrial applications.
Top product features:
- Double sealed closure for protection against dust and moisture
- Radial ball bearing design for smooth rotation and reduced friction
- Fixed expansion type for stable and consistent performance
Top product applications:
- Pump shafts
- Compressor shafts
- Motor shafts
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UCFLU-25, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 125 mm, Overall Length 70 mm, Overall Width 38.9 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.70
- Package Height: 5.00
- Package Weight: 1.50
Product info last updated on February 8, 2026 5:14pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
