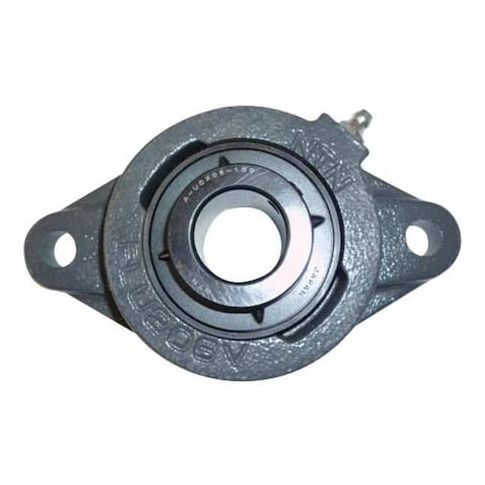

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Set Screw Locking MPN:UCFLU-20
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Set Screw Locking
The NTN 2-Bolt Flange Bearing is a versatile and reliable solution for applications requiring high-speed and heavy-duty performance. Its alloy steel bearing insert and cast iron housing provide exceptional strength and durability, while the double sealed design ensures long-lasting lubrication and protection from contaminants. Suitable for use in a wide range of industries, including automotive, aerospace, and industrial manufacturing, this bearing is ideal for applications where precision and reliability are critical, such as in gearboxes, pumps, and other high-speed machinery. Its compact design and easy installation make it a convenient choice for engineers and maintenance personnel alike.
Top product features:
- 2-Bolt flange design allows for easy mounting and installation
- Radial ball bearing provides smooth rotation and reduced friction
- Double sealed closure protects against dust and moisture
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyor Systems
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UCFLU-20, Lubricant Material NLGI #3 Equivalent, Maximum Speed 6,700 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 113 mm, Overall Length 61 mm, Overall Width 37.3 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.60
- Package Height: 4.40
- Package Weight: 1.25
