2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Cast Iron, Set Screw MPN:UCFLU-30
2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Cast Iron, Set Screw

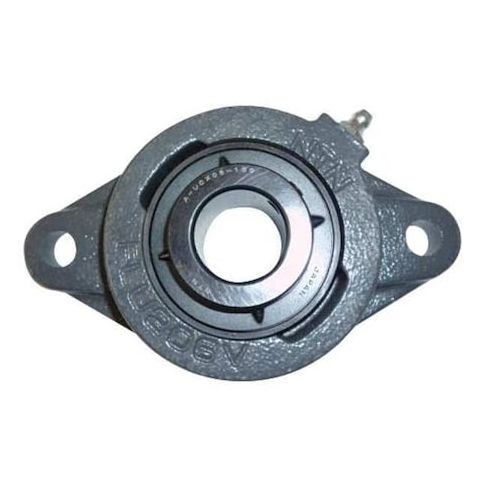

The NTN 2-Bolt Flange Bearing is a heavy-duty radial ball bearing ideal for use in high-speed applications where reliability and durability are paramount. Its alloy steel bearing insert and cast iron housing provide exceptional strength and resistance to wear and corrosion. With a maximum speed of 5,900 RPM and operating temperature range of -30°C to 120°C, this bearing is suitable for use in a variety of industries, including manufacturing, oil and gas, and aerospace. Its compact design and double sealed closure make it an excellent choice for applications where space is limited and contamination is a concern.
Top product features:
- 2-Bolt design provides secure mounting options for various applications
- Double sealed closure protects against dust and moisture ingress
- Radial ball bearing design allows for smooth rotation and reduced friction
Top product applications:
- Pump and motor mounting
- Gearbox mounting
- Machine tool spindle mounting
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UCFLU-30, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 142 mm, Overall Length 83 mm, Overall Width 42.1 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 3.50
- Package Height: 1.90
- Package Weight: 2.30
Product info last updated on February 8, 2026 2:50pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
