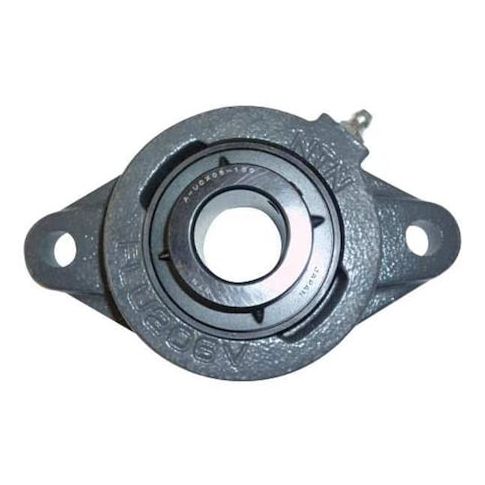

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 35 mm Dia, Cast Iron, Set Screw Locking MPN:UCFLU-35
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 35 mm Dia, Cast Iron, Set Screw Locking
The NTN 2-Bolt Flange Bearing is a high-performance radial ball bearing designed for heavy-duty applications. Its alloy steel construction and double-sealed closure ensure long-lasting durability and resistance to harsh environments. With a maximum speed of 4,200 RPM and operating temperature range of -30°C to 120°C, this bearing is suitable for use in a variety of industries including automotive, aerospace, and industrial machinery. Its compact rhombus housing and fixed expansion type make it ideal for applications where space is limited, such as in gearboxes, pulleys, and other high-speed machinery.
Top product features:
- 2-Bolt design provides secure mounting capability
- Radial ball bearing design enables smooth rotation and low friction
- Double sealed closure protects against contamination and debris
Top product applications:
- Conveyor belt drives
- Pump and machinery applications
- Gearbox applications
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 35 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UCFLU-35, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 156 mm, Overall Length 96 mm, Overall Width 46.4 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.10
- Package Height: 6.30
- Package Weight: 3.20
Product info last updated on April 17, 2026 8:14pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
