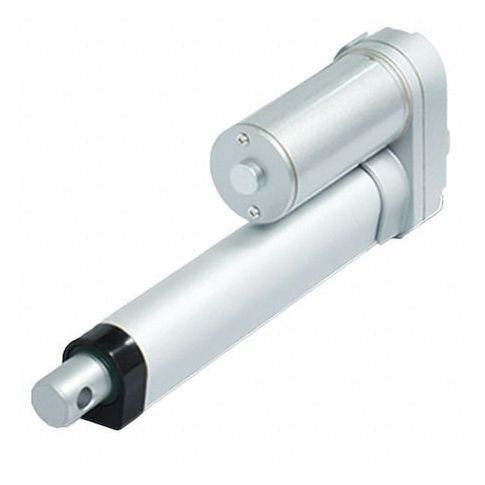

Actuator, 112 lbf, 12V DC MPN:ND3L-12-20-25-IP65-A130
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G407868064
Actuator, 112 lbf, 12V DC
The NTN 12V DC Permanent Magnet Actuator is a reliable and efficient solution for a variety of applications, including automation, robotics, and medical devices. With a load capacity of 112 lbf and a stroke length of 25 mm, this actuator provides precise control and movement. Its compact design and aluminum housing make it ideal for use in tight spaces. The actuator's high speed of 0.21 in/sec and low current draw of 3.2 A also make it energy-efficient and cost-effective. Suitable for use in temperatures ranging from -13 to 149°F, this actuator is a versatile and reliable choice for a range of industries and applications.
Top product features:
- Permanent Magnet Motor provides continuous operation
- Gear Drive System enables precise control of the actuator's movement
- Limit Switch Setting allows for fixed control of the actuator's position
Top product applications:
- Automotive seat adjustment system
- Industrial automation assembly line
- Medical equipment wheelchair lift
Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 112 lbf, Stroke Length 25 mm, Speed at Full Load 0.21 in/sec, Duty Cycle 25 Percent, Full Load Current 3.2 A, Retracted Length 130 mm, Gear Material Aluminum, Includes Capacitor Capacitor Included, Drive System Type Gear, Enclosure IP Rating IP65, Housing Material Aluminum, Limit Switch Setting Fixed, Operating Temperature - Maximum 149 Degrees F, Operating Temperature - Minimum -13 Degrees F
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 3.54
- Package Height: 2.40
- Package Weight: 2.16
Product info last updated on March 7, 2026 11:33am UTC
Category: Bearings, V-belts and Power Transmission Equipment
