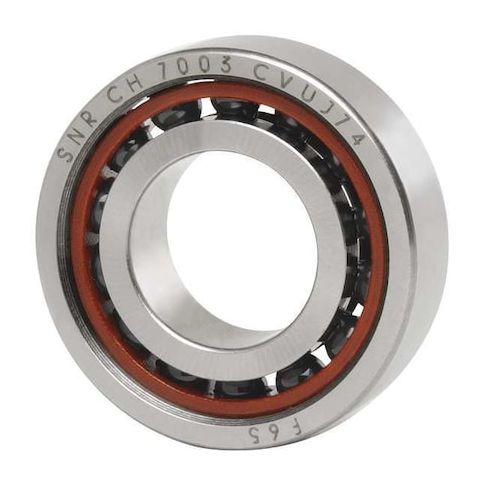

Angular Contact Bearing, 17mm, OD 35mm, PK2 MPN:7003CVDUJ74
Angular Contact Bearing, 17mm, OD 35mm, PK2
This high-performance Angular Contact Bearing from NTN is designed to provide smooth and precise motion in demanding applications. With a 15-degree contact angle and duplex bearing type, it offers exceptional load-carrying capacity and resistance to shock and vibration. Suitable for use in high-speed and high-temperature environments, this bearing is ideal for applications such as gearboxes, pumps, and motors in industries like aerospace, automotive, and industrial machinery. Its compact design and high-speed capabilities make it an excellent choice for applications requiring high precision and reliability.
Top product features:
- Angular Contact Bearing design allows for high precision and smooth operation at high speeds.
- Alloy Steel ball material provides increased strength and durability.
- Phenolic cage material ensures reliable performance in a wide temperature range.
Top product applications:
- Industrial machinery
- Automotive applications
- Aerospace equipment
Angular Contact Ball Bearing, Ball Material Alloy Steel, Bearing Industry Number 7003, Bore Diameter 17 mm, Cage Material Phenolic, Closure Open, Contact Angle 15 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 33,800 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outside Diameter 35 mm, Overall Width 10 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 7, Cage Type Stratified
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 1.50
- Package Weight: 0.20
Product info last updated on February 28, 2026 10:39am UTC
Category: Bearings, V-belts and Power Transmission Equipment
