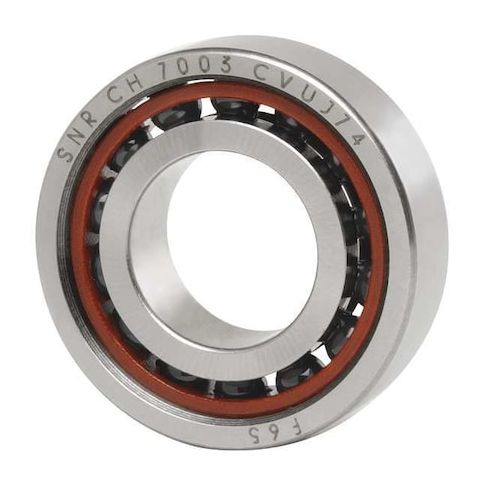

Angular Contact Bearing, 17mm, OD 35mm, PK2 MPN:CH7003CVDUJ74
Angular Contact Bearing, 17mm, OD 35mm, PK2
The NTN Angular Contact Bearing, 17mm, OD 35mm, PK2 is a high-performance bearing designed for demanding applications. Its ceramic ball material and phenolic cage ensure exceptional durability and resistance to corrosion, making it ideal for use in extreme temperatures (-40°C to 120°C) and high-speed environments (up to 43,900 RPM). This bearing is perfect for use in industrial equipment, aerospace, and automotive applications, particularly in situations where precise angular contact is required. Its compact design and lightweight construction make it an excellent choice for applications where space and weight are critical considerations.
Top product features:
- Ceramic ball material provides high wear resistance and corrosion protection
- Phenolic cage material ensures smooth rolling and reduces the risk of ball cage wear
- 15-degree contact angle enables high precision and smooth rotation at high speeds
Top product applications:
- High-performance industrial equipment such as gearboxes and motors
- Aerospace applications where high speed and temperature stability are required
- Automotive applications such as transmissions and differentials
Angular Contact Ball Bearing, Ball Material Ceramic, Bearing Industry Number 7003, Bore Diameter 18 mm, Cage Material Phenolic, Closure Open, Contact Angle 15 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 43,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outside Diameter 35 mm, Overall Width 10 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 7, Cage Type Stratified
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.90
- Package Width: 1.10
- Package Height: 1.70
- Package Weight: 0.15
Product info last updated on January 29, 2026 6:23pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
