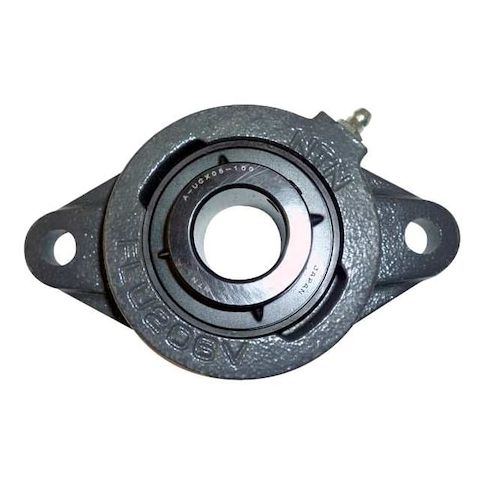

2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:ARFLU-1
2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
This NTN 2-Bolt Flange Bearing is a reliable and versatile solution for a variety of industrial applications. Its radial ball bearing design provides smooth and quiet operation, while the alloy steel insert ensures durability and resistance to wear. With a maximum speed of 5,900 RPM and operating temperature range of -20 to 250°F, this bearing is suitable for use in high-temperature and high-speed applications. Ideal for use in machinery, equipment, and systems where a secure and stable bearing is required, such as in conveyor systems, pumps, and gearboxes. Its compact design and easy mounting make it a convenient choice for many industries.
Top product features:
- The bearing has a 2-bolt flange design.
- It is a radial ball bearing with a cylindrical bore.
- It is double sealed for closure.
Top product applications:
- Pump shaft bearing
- Gearbox bearing
- Conveyor belt pulley bearing
2 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-AR205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 57/64 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.70
- Package Height: 5.10
- Package Weight: 1.43
Product info last updated on February 24, 2026 8:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
