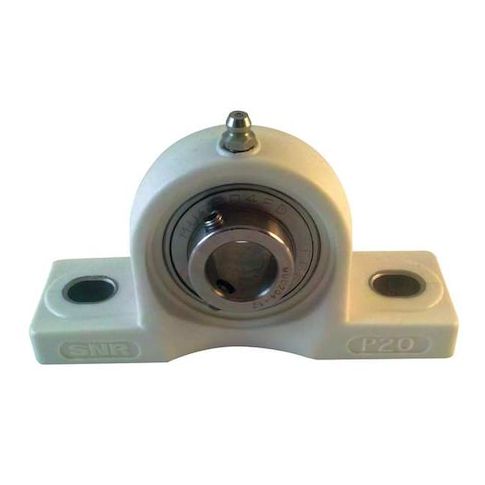

Pillow Block Bearing, Polymer, Set Screw Locking, Ball Insert, 3/4 in Dia, Stainless Steel MPN:SUCPPL204-12
Pillow Block Bearing, Polymer, Set Screw Locking, Ball Insert, 3/4 in Dia, Stainless Steel
This NTN Pillow Block Bearing is a reliable solution for a wide range of applications, including food processing, pharmaceutical, and marine environments. Its stainless steel bearing insert ensures durability and resistance to corrosion, while the FDA/USDA-H1 solid grease provides a safe and non-toxic lubricant. The bearing's radial ball design and double sealed closure provide smooth operation and protection from contaminants. With a maximum temperature rating of 212°F and a minimum temperature rating of -4°F, this bearing is suitable for use in a variety of industries, including manufacturing, oil and gas, and heavy machinery. It's easy to install and maintain.
Top product features:
- Double sealed closure provides protection from dirt and moisture
- Bearing insert is made of stainless steel for corrosion resistance
- FDA/USDA-H1 solid grease is used for lubrication to meet food-grade standards
Top product applications:
- Machine Tool Applications
- Pump and Compressor Applications
- Conveyor and Material Handling Applications
Pillow Block Bearing, Base Height 0.559 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 19/64 in, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 3 47/64 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.546 in, Overall Length 5 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 1.80
- Package Height: 5.00
- Package Weight: 0.72
Product info last updated on March 27, 2026 1:07pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
