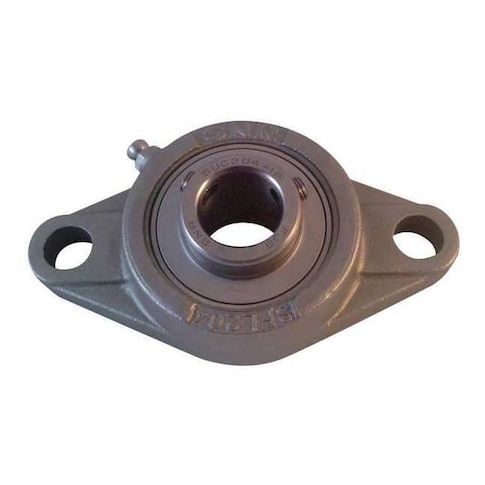

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL204-12
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Stainless Steel, Set Screw Locking
This 2-bolt flange bearing from NTN is a reliable and durable solution for a variety of applications. Its stainless steel construction and FDA/USDA-H1 compliant lubricant make it suitable for use in food processing, pharmaceutical, and other sanitary environments. The bearing's radial ball design and double-sealed closure ensure smooth operation and protection from contaminants. With a maximum speed of 5,900 RPM and a temperature range of -0 to 212°F, it can handle demanding applications. Suitable for use in machinery, equipment, and other industrial settings, this bearing provides long-lasting performance and minimal maintenance.
Top product features:
- Double sealed closure for protection against contaminants and moisture
- Radial ball bearing design for smooth and efficient rotation
- Stainless steel housing and bearing insert for resistance to corrosion and wear
Top product applications:
- Food Processing Equipment
- Machine Tooling and Automation
- Medical Equipment Manufacturing
2 Bolt Flange Bearing, Back Side to Center Width 0.591 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 3 35/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 2.70
- Package Height: 1.50
- Package Weight: 0.99
Product info last updated on February 3, 2026 7:04am UTC
Category: Bearings, V-belts and Power Transmission Equipment
