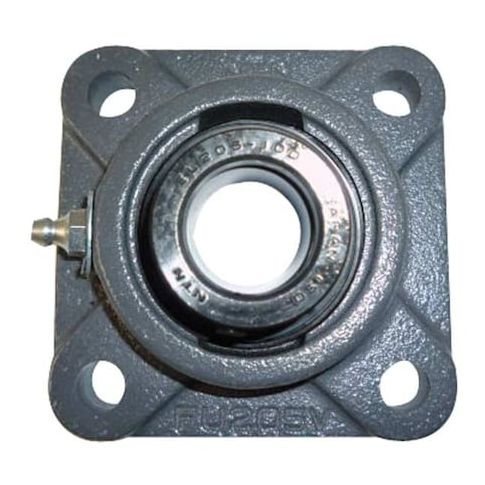

4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 1 in Dia, Cast Iron, Eccentric Locking Collar Locking MPN:UELFU-1M
4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 1 in Dia, Cast Iron, Eccentric Locking Collar Locking
The NTN 4-Bolt Flange Bearing is a robust and reliable solution for heavy-duty applications. With a maximum speed of 5,900 RPM and operating temperatures ranging from -40 to 250°F, this bearing can handle demanding environments. Its alloy steel insert and double sealed closure ensure long-lasting performance and protection from contaminants. Suitable for use in industrial machinery, pumps, and gearboxes, this bearing provides smooth operation and reduced maintenance. Its compact design and fixed expansion type make it easy to install and integrate into existing systems, making it an ideal choice for manufacturers seeking high-performance bearing solutions.
Top product features:
- Double sealed design provides a secure and protected environment for the bearing insert
- Radial ball bearing insert allows for smooth and quiet rotation
- Bore diameter of 1 inch enables the bearing to fit within a range of applications
Top product applications:
- Industrial machinery
- Pumps and compressors
- Gearboxes
4 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing A-UEL205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.30
- Package Height: 4.50
- Package Weight: 2.11
Product info last updated on March 19, 2026 2:27am UTC
Category: Bearings, V-belts and Power Transmission Equipment
