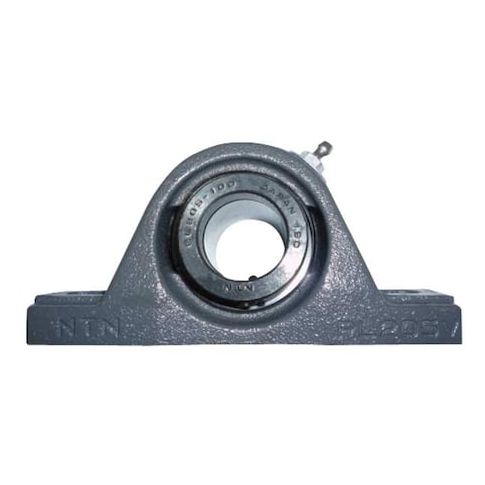

Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 1-1/4 in Dia, Alloy Steel Insert Material MPN:UELPL-1.1/4SM
Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 1-1/4 in Dia, Alloy Steel Insert Material
The NTN Pillow Block Bearing is a versatile and reliable solution for a wide range of applications. Its cylindrical bore and radial ball design provide smooth operation and long-lasting performance, making it ideal for use in heavy machinery, industrial equipment, and high-speed machinery. The bearing's alloy steel insert and cast iron housing ensure durability and resistance to extreme temperatures, from -40°F to 250°F. With a maximum speed of 4,900 RPM, it's perfect for applications that require high-speed rotation, such as in the aerospace, automotive, and manufacturing industries. Its compact design and easy installation make it a convenient choice for many applications.
Top product features:
- The bearing insert is made of alloy steel.
- The bearing insert is a radial ball type.
- The housing is made of cast iron.
Top product applications:
- Machine tool spindle bearing
- Conveyor belt pulley bearing
- Robot arm bearing
Pillow Block Bearing, Base Height 0.657 in, Base Width 1.874 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 1 9/16 in, Closure Open, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 4 5/8 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.70
- Package Height: 2.30
- Package Weight: 3.37
Product info last updated on February 27, 2026 12:30am UTC
Category: Bearings, V-belts and Power Transmission Equipment
