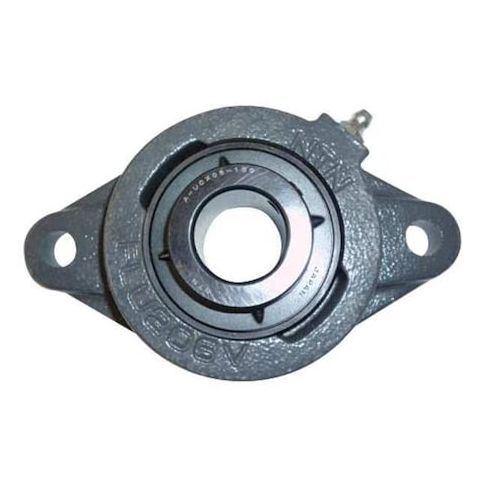

2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw MPN:UCFLU-3/4M
2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw
The NTN 2-Bolt Flange Bearing is a heavy-duty solution for industrial applications, providing reliable support and smooth operation in high-speed environments. With a maximum speed of 6,700 RPM and temperature range of -40°F to 250°F, this bearing is suitable for use in machinery, equipment, and automotive applications. Its double-sealed design and alloy steel construction ensure long-lasting performance and resistance to wear and corrosion. The bearing's compact size and light weight make it easy to integrate into existing systems, while its rhombus housing design provides additional strength and stability. Ideal for use in manufacturing, construction, and other demanding industries.
Top product features:
- 2-Bolt design provides secure mounting and easy installation
- Double sealed closure maintains lubrication and protects against contamination
- Rhombus housing design provides a stable and rigid bearing structure
Top product applications:
- Industrial Equipment
- Pumps and Compressors
- Conveyor Systems
2 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UC204-012D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 6,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 13/32 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.50
- Package Height: 4.50
- Package Weight: 1.25
Product info last updated on February 28, 2026 5:47pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
