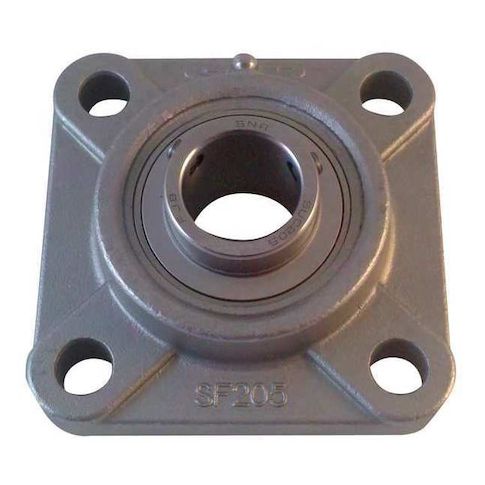

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw MPN:SUCF205-16
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw
This 4-bolt flange bearing from NTN is a reliable and versatile solution for a wide range of applications, including food processing, pharmaceutical, and chemical industries where cleanliness and sanitation are paramount. Its stainless steel construction and FDA/USDA-H1 solid grease ensure a high level of corrosion resistance and lubrication, while its fixed expansion type and double sealed closure provide a secure and leak-proof seal. With a maximum speed of 5,100 RPM and operating temperature range of -20 to 250 degrees F, this bearing is suitable for high-speed and high-temperature applications in various industries, including aerospace, automotive, and heavy machinery.
Top product features:
- Back Side to Center Width of 0.63 in allows for easy mounting and installation
- Double Sealed closure ensures long-lasting protection against dust and moisture
- Fixed Expansion Type provides a secure fit and stable operation
Top product applications:
- Food Processing Equipment
- Pumping Systems
- Conveyor Systems
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.20
- Package Height: 1.60
- Package Weight: 1.86
Product info last updated on February 13, 2026 1:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
