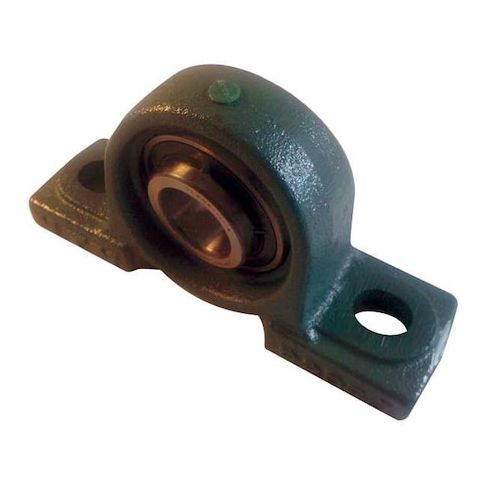

Pillow Block Bearing, Cast Iron, Eccentric Locking Collar Locking, Ball Insert, 3/4 in Dia, Alloy Steel MPN:UELPL204-012D1W3
Pillow Block Bearing, Cast Iron, Eccentric Locking Collar Locking, Ball Insert, 3/4 in Dia, Alloy Steel
The NTN Pillow Block Bearing is a reliable and versatile solution for various applications requiring precision and durability. With a 3/4in bore diameter and radial ball bearing insert, it supports high-speed operations up to 6,700 RPM and withstands extreme temperatures from -40°F to 250°F. The bearing's alloy steel construction and cast iron housing provide exceptional strength and stability. Suitable for use in industrial settings, such as manufacturing and assembly lines, it can be easily mounted through bolt-through holes. Its compact design and high-speed capabilities make it an ideal choice for applications involving heavy loads and demanding conditions.
Top product features:
- Radial ball bearing design allows for smooth rotation and reduced friction
- Open closure type allows for easy access and maintenance of the bearing
- Bolt-through mount design provides a secure and stable mounting option
Top product applications:
- Heavy Duty Industrial Machinery
- Conveyor Systems
- Robotics and Automation
Pillow Block Bearing, Base Height 0.551 in, Base Width 1.496 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 1/4 in, Closure Open, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 6,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 3 47/64 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.519 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.90
- Package Height: 5.40
- Package Weight: 1.80
