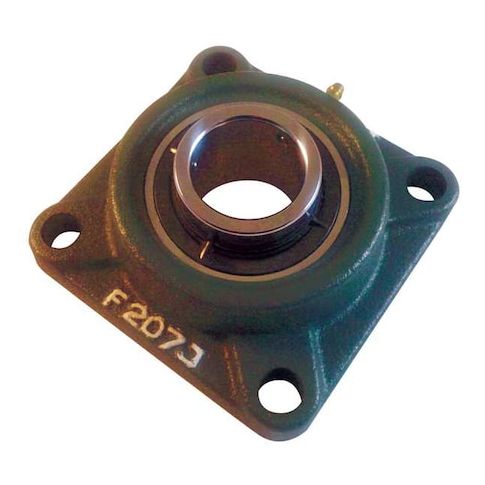

Flange Bearing, 4-Bolt, Ball, 1-1/8" Bore MPN:UCF206-102D1
Flange Bearing, 4-Bolt, Ball, 1-1/8" Bore
This 4-bolt flange bearing is a reliable and versatile solution for various industrial applications, including machinery, equipment, and manufacturing processes. With its alloy steel bearing insert and cast iron housing, it provides a durable and long-lasting performance. The double-sealed design ensures optimal protection against dust and moisture, while the fixed expansion type allows for easy installation and maintenance. Suitable for temperatures ranging from -40°F to 250°F and speeds up to 4,900 RPM, this bearing is ideal for use in high-temperature, high-speed, and heavy-duty applications, including conveyor systems, pumps, and gearboxes.
Top product features:
- Double sealed closure to protect against contaminants and debris
- Cylindrical bore with a diameter of 1 1/8 in to accommodate specific applications
- Radial ball bearing insert made of alloy steel for durability and resistance to wear
Top product applications:
- Heavy Duty Industrial Equipment
- Conveyor Systems
- Gearboxes
4 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC206-102D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.70
- Package Height: 2.00
- Package Weight: 2.45
Product info last updated on February 16, 2026 3:58am UTC
Category: Bearings, V-belts and Power Transmission Equipment
