Heavy Duty Disc Radial Ball Bearing, HPC103TPA Industry Number, Double Sealed Closure, Alloy Steel MPN:HPC103TPA
Heavy Duty Disc Radial Ball Bearing, HPC103TPA Industry Number, Double Sealed Closure, Alloy Steel

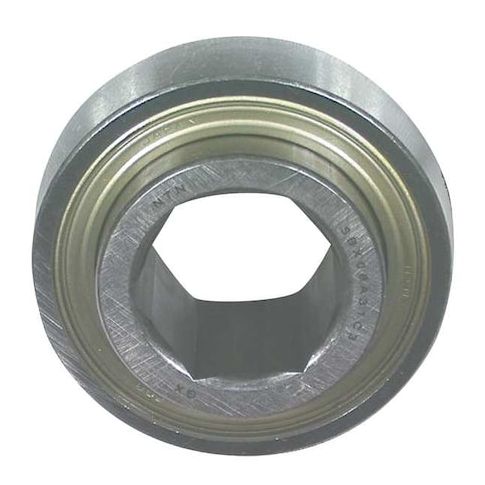

The NTN 1.25 In. Hex Bore Disc Bearing is a high-performance agricultural bearing designed for demanding applications. With a steel ball material and alloy steel housing, this bearing provides exceptional strength and durability. Its non-flanged design and double sealed closure ensure long-lasting operation in harsh environments. Suitable for use with shaft sizes 1 1/4 in, this bearing is ideal for applications such as agricultural machinery, construction equipment, and heavy industry. Its high dynamic radial load capacity and maximum speed of 470 RPM make it an excellent choice for demanding applications where reliability and performance are critical.
Top product features:
- Double sealed closure for protection from contaminants and debris
- Hex bore design for secure mounting on 1 1/4 in shafts
- Dynamic radial load capacity of 39,000 N for high-stress applications
Top product applications:
- Agricultural machinery
- Construction equipment
- Industrial machinery
Agricultural Disc Bearing, Bore Shape Hex, Bore Size 1.283 in, Ball Material Steel, Flange Type Non-Flanged, Housing Material Alloy Steel, Outside Diameter 3.543 in, Overall Width 1.435 in, System of Measurement Inch, Closure Double Sealed, ABEC Rating 1, Bearing Industry Number HPC103TPA, Bore Size Tolerance +/-0.005 in, Cage Material Steel, Cage Type Pressed, Dynamic Radial Load Capacity 39,000 N, Flange Size Not Applicable, For Shaft Size 1 1/4 in, ISO Rating Class 0, Maximum Speed 470 RPM
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.60
- Package Height: 4.00
- Package Weight: 2.11
Product info last updated on February 1, 2026 12:59pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
