Flange Bearing, 2-Bolt, Ball, 1-3/16" Bore MPN:UCFLU-1.3/16M
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2675757

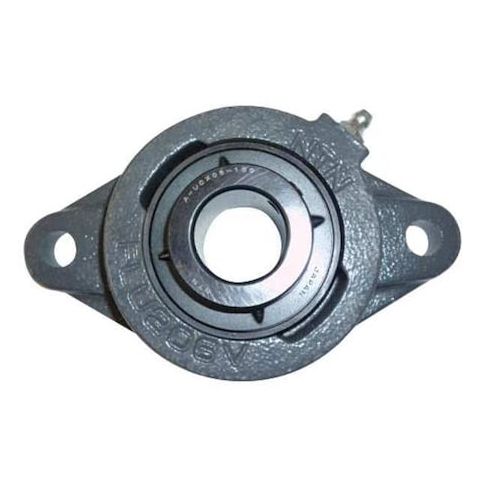

Flange Bearing, 2-Bolt, Ball, 1-3/16" Bore
This 2-bolt flange bearing from NTN is designed for heavy-duty applications, featuring a robust alloy steel insert and cast iron housing. With a maximum speed of 5,900 RPM and operating temperature range of -40 to 250°F, it can withstand demanding conditions. The double-sealed closure provides long-lasting protection against contaminants. Suitable for use in industrial machinery, automotive, and construction equipment, this bearing offers improved efficiency and reliability. Its compact rhombus housing and 1 3/16 in bore make it an ideal solution for applications requiring precise fitment and minimal space.
Top product features:
- Double Sealed Closure provides a secure and protected environment for the bearing insert.
- Radial Ball Bearing Insert allows for smooth and efficient rotation in radial loads.
- Cast Iron Housing provides a durable and robust structure for the bearing insert.
Top product applications:
- Industrial machinery
- Pumps
- Compressors
2 Bolt Flange Bearing, Back Side to Center Width 0.78 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UC206-103D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 3 9/32 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 3.60
- Package Height: 1.90
- Package Weight: 2.28
Product info last updated on February 3, 2026 10:45am UTC
Category: Bearings, V-belts and Power Transmission Equipment
