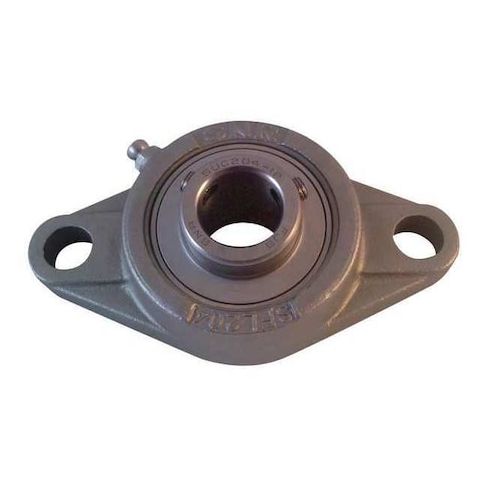

Flange Bearing, 2-Bolt, Ball, 1-1/4" Bore MPN:SUCFL206-20CO
Flange Bearing, 2-Bolt, Ball, 1-1/4" Bore
This 2-bolt flange bearing from NTN is a reliable and durable solution for various industrial applications. Its stainless steel housing and insert provide exceptional resistance to corrosion and wear, making it ideal for use in harsh environments. The bearing's radial ball design and double-sealed closure ensure smooth operation and maximum protection against contamination. With a maximum speed of 4,300 RPM and a temperature range of -14 to 212°F, this bearing is suitable for use in a wide range of applications, including food processing, pharmaceuticals, and chemical manufacturing. Its compact design and easy installation make it a convenient choice for many industries.
Top product features:
- Double sealed closure provides protection from contaminants and debris
- Bearing insert is made of stainless steel for resistance to corrosion and wear
- Maximum speed of 4,300 RPM allows for high-performance applications
Top product applications:
- Automotive applications requiring a reliable and high-speed bearing solution
- Food processing equipment where a sanitary and corrosion-resistant bearing is needed
- Pharmaceutical equipment where a bearing can operate in a wide temperature range and meet FDA/USDA standards
2 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 4 39/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on January 31, 2026 10:44pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
