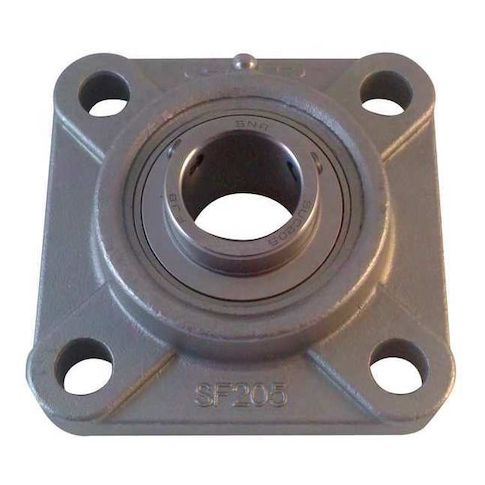

4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw Locking MPN:SUCF205-16CC
4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw Locking
The NTN 4-Bolt Flange Bearing is a high-performance bearing designed for demanding applications in food processing, pharmaceutical, and other sanitary environments. With its stainless steel housing and FDA/USDA-H1 solid grease, this bearing provides exceptional durability and resistance to corrosion. Its radial ball bearing insert ensures smooth operation and long lifespan. Suitable for use in applications where high speeds and temperatures are present, such as in conveyor systems, pumps, and mixers. The bearing's compact design and fixed expansion type make it ideal for use in tight spaces, offering reliable performance and minimal maintenance.
Top product features:
- Double sealed closure to prevent contamination and maintain bearing integrity
- Bearing insert material made of stainless steel for corrosion resistance and durability
- Lubricant material is FDA/USDA-H1 solid grease for use in sanitary and food-grade applications
Top product applications:
- Food Processing Machinery
- Pump Applications
- Industrial Equipment
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 1, 2026 3:53am UTC
Category: Bearings, V-belts and Power Transmission Equipment
