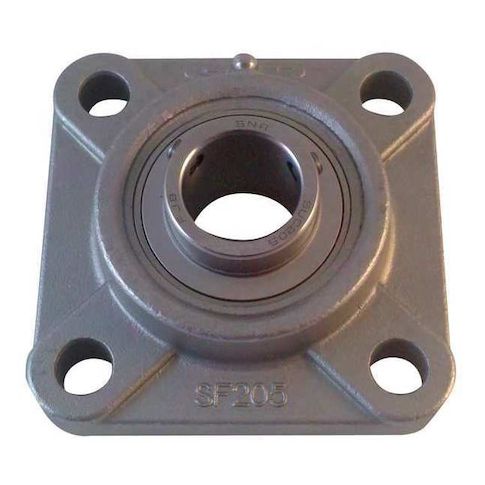

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw MPN:SUCF205-16CO
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw
This NTN 4-Bolt Flange Bearing is a high-performance solution for demanding applications. With a stainless steel housing and insert, it provides exceptional durability and resistance to corrosion in harsh environments. The double-sealed design ensures long-lasting protection against contaminants and moisture. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness is critical, this bearing can withstand extreme temperatures (-20°F to 250°F) and high speeds (up to 5,100 RPM). Its compact size and fixed expansion type make it ideal for equipment mounting and machinery repair, offering a reliable and efficient solution for a wide range of applications.
Top product features:
- Fixed Expansion Type: The bearing has a fixed expansion type, which allows it to maintain its position and function without shifting or expanding under various conditions.
- Double Sealed Closure: The bearing has a double sealed closure, which provides a high level of protection against dust and moisture to ensure reliable operation.
- Stainless Steel Housing and Insert: The bearing features a stainless steel housing and insert, which provides excellent corrosion resistance and durability in harsh environments.
Top product applications:
- Pumps and Pneumatic Systems
- Food Processing Equipment
- Chemical Processing Equipment
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
