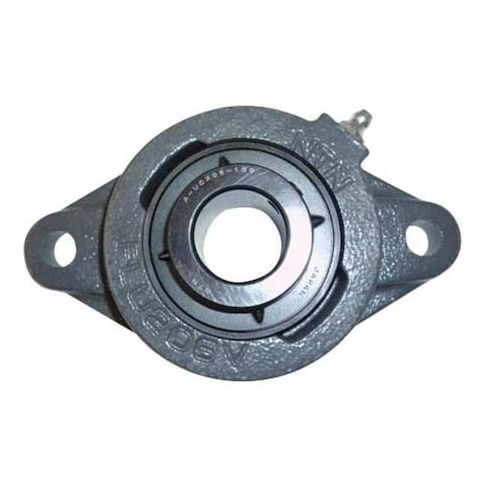

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:UCFLUX-1M
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
This 2-bolt flange bearing from NTN is designed for heavy-duty applications, featuring a radial ball bearing insert made of alloy steel and a cast iron housing. With a maximum speed of 5,900 RPM and a temperature range of -40°F to 250°F, it can withstand extreme conditions. Its double-sealed closure and NLGI #3 equivalent lubricant ensure long-lasting performance. Suitable for use in industrial machinery, pumps, and gearboxes, this bearing provides reliable support and reduces maintenance needs. Its compact rhombus design makes it ideal for space-constrained applications, making it a valuable component for a wide range of industrial and commercial uses.
Top product features:
- Double sealed closure to prevent contamination and maintain lubrication
- Radial ball bearing design for smooth rotation and reduced friction
- Cylindrical bore for precise fit and reduced vibration
Top product applications:
- Industrial equipment such as pumps and fans
- Automotive and truck applications including engines and transmissions
- Construction and agricultural equipment such as generators and hydraulic systems
Flange Mount Bearing, Back Side to Center Width 0.78 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 5/8 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UCX05-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 0 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 2.00
- Package Height: 5.70
- Package Weight: 2.40
Product info last updated on February 1, 2026 10:26am UTC
Category: Bearings, V-belts and Power Transmission Equipment
