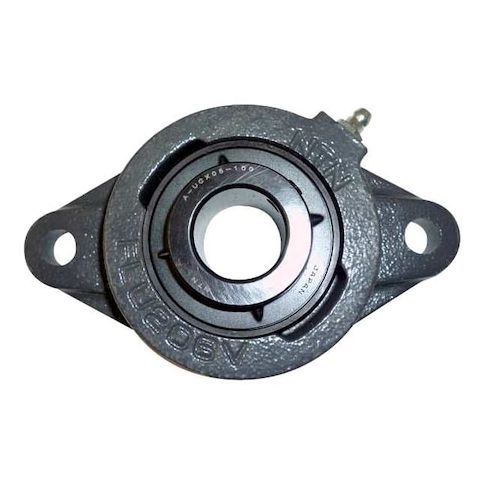

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw MPN:ARFLU-3/4
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw
The NTN 2-Bolt Flange Bearing is a reliable and versatile solution for various industrial applications. Ideal for use in heavy-duty equipment, machinery, and power transmission systems, this bearing features a radial ball bearing insert made of alloy steel and is designed for fixed expansion. Its double-sealed closure ensures long-lasting performance and protection from contaminants. With a maximum speed of 6,700 RPM and operating temperature range of -20 to 250 degrees F, this bearing is suitable for a wide range of applications, including pumps, gearboxes, and conveyor systems, where high performance and durability are required.
Top product features:
- 2-Bolt flange design provides a secure attachment method
- Double sealed closure protects the bearing from contaminants and debris
- Cylindrical bore with a 3/4in diameter allows for smooth rotation and reduced friction
Top product applications:
- Pump shafts
- Gearbox shafts
- Conveyor belt pulleys
Flange Mount Bearing, Back Side to Center Width 0.75 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 3/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-AR204-012D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 6,700 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 0 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.70
- Package Height: 1.50
- Package Weight: 1.20
Product info last updated on February 20, 2026 4:22pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
