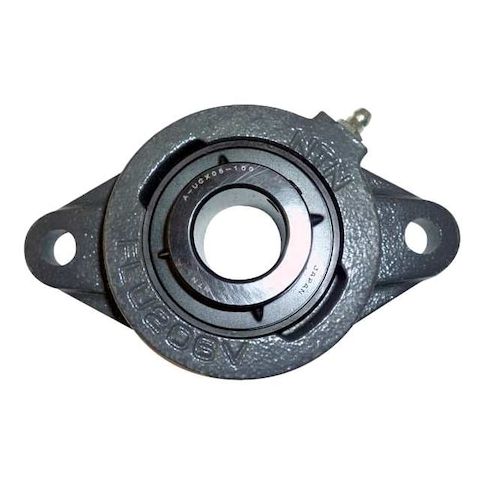

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 5/8 in Dia, Cast Iron, Set Screw Locking MPN:ARFLU-5/8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2159367
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 5/8 in Dia, Cast Iron, Set Screw Locking
The NTN 2-Bolt Flange Bearing is a high-performance bearing designed for heavy-duty applications. Its alloy steel bearing insert and cast iron housing provide exceptional durability and strength, while the double-sealed closure ensures long-lasting protection against dust and moisture. With a maximum speed of 7,800 RPM and a temperature range of -20 to 250°F, this bearing is ideal for use in industrial equipment, machinery, and power transmission systems. Its compact design and fixed expansion type make it easy to install and maintain, making it a reliable choice for applications in manufacturing, oil and gas, and construction.
Top product features:
- Double sealed for protection against dirt and moisture
- Radial ball bearing design for smooth rotation and low friction
- Fixed expansion type for secure fit in applications requiring high speed operation
Top product applications:
- High-speed machinery such as turbines or pumps
- Industrial equipment such as gearboxes or motors
- Automotive applications such as engine components or transmission systems
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 5/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing ARFLU-5/8, Lubricant Material NLGI #3 Equivalent, Maximum Speed 7,800 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 in, Number of Mount Holes 2, Overall Height 2 13/32 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.50
- Package Height: 4.50
- Package Weight: 1.08
Product info last updated on February 24, 2026 11:43am UTC
Category: Bearings, V-belts and Power Transmission Equipment
