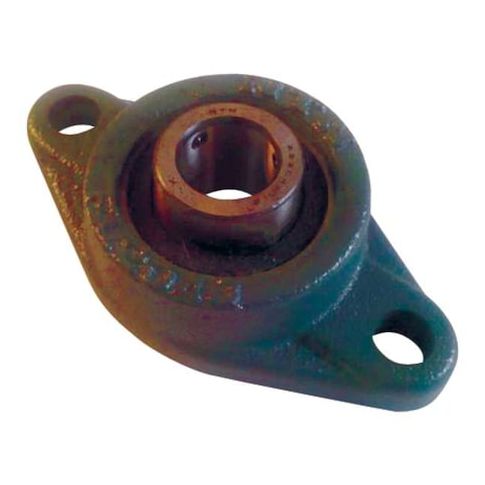

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 2 in Dia, Cast Iron, Set Screw MPN:UCFL211-200D1
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 2 in Dia, Cast Iron, Set Screw
The NTN 2-Bolt Flange Bearing is a robust and reliable solution for high-speed applications, capable of withstanding temperatures from -40°F to 250°F and speeds up to 2,900 RPM. Its double-sealed design ensures long-lasting performance in harsh environments, while its alloy steel bearing insert and cast iron housing provide exceptional durability. Suitable for use in a variety of industries, including aerospace, automotive, and manufacturing, this bearing is ideal for applications where precision and reliability are critical, such as in gearboxes, pumps, and motors. Its compact design and easy installation make it a versatile and convenient choice for engineers and technicians.
Top product features:
- 2-Bolt flange design for easy installation and secure mounting
- Double sealed closure for protection against dust and moisture
- Radial ball bearing for smooth and quiet rotation in radial loads
Top product applications:
- Pump shafts
- Conveyor rollers
- Gearbox output shafts
2 Bolt Flange Bearing, Back Side to Center Width 0.984 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC211-200D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 2,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 5 1/8 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.10
- Package Width: 5.40
- Package Height: 2.60
- Package Weight: 7.68
Product info last updated on January 31, 2026 6:12am UTC
Category: Bearings, V-belts and Power Transmission Equipment
