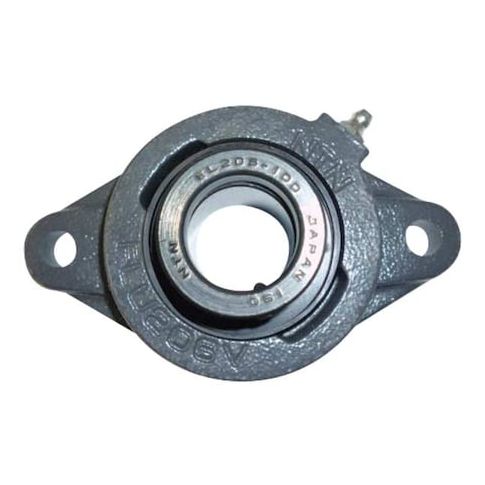

Flange Bearing, 2-Bolt, Ball, 1-3/4" Bore MPN:UELFLU-1.3/4M
Flange Bearing, 2-Bolt, Ball, 1-3/4" Bore
The NTN 2-Bolt Flange Bearing is a reliable and versatile solution for applications requiring radial ball bearings. With a 1 3/4 inch bore and a maximum speed of 3,500 RPM, this bearing is suitable for use in a variety of industrial settings, including manufacturing, assembly, and packaging equipment. The double-sealed design and fixed expansion type ensure long-lasting performance and protection from contaminants. The bearing's alloy steel insert and cast iron housing provide durability and resistance to wear and corrosion. Ideal for use in applications where precision and reliability are crucial, such as in food processing, pharmaceutical, and aerospace industries.
Top product features:
- 2-Bolt Flange Bearing provides a secure attachment point for mounting
- Double Sealed Closure protects the bearing from contaminants and debris
- Fixed Expansion Type prevents the bearing from shifting or rotating within the housing
Top product applications:
- Pumps
- Fans
- Gearboxes
2 Bolt Flange Bearing, Back Side to Center Width 0.937 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UEL209-112D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 3,500 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 4 3/8 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.20
- Package Height: 2.70
- Package Weight: 4.89
Product info last updated on February 26, 2026 4:51am UTC
Category: Bearings, V-belts and Power Transmission Equipment
