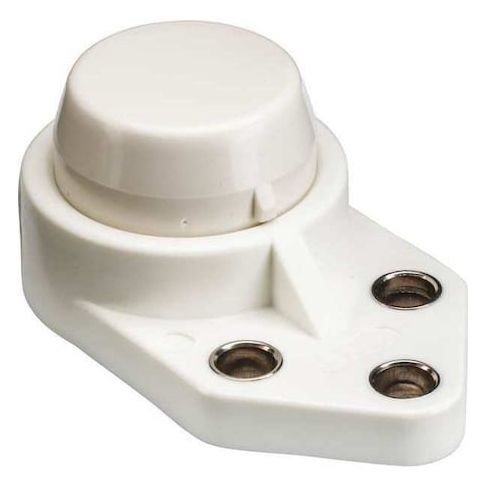

3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw MPN:SUCFBL206-20CCFG1
3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw
The NTN 3-Bolt Flange Bearing is a high-performance bearing designed for use in food and beverage environments, where cleanliness and reliability are paramount. With its stainless steel bearing insert and FDA/USDA-H1 solid grease, this bearing provides a sanitary solution for applications such as brewery equipment, winery machinery, and food processing lines. Its fixed expansion type and double sealed closure ensure long-lasting performance and protection from contaminants. The bearing's radial ball design and cylindrical bore make it suitable for high-speed applications, with a maximum speed of 4,300 RPM and a temperature range of up to 250°F.
Top product features:
- Double sealed closure provides protection from contamination and debris
- Radial ball bearing type offers smooth and quiet operation
- FDA/USDA-H1 solid grease lubricant ensures safe and reliable operation in food and beverage environments
Top product applications:
- Food processing equipment
- Pump and valve applications in the food and beverage industry
- Conveyor systems in the food and beverage industry
3 Bolt Flange Bearing, Back Side to Center Width 0.76 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 3 51/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.30
- Package Height: 2.70
- Package Weight: 1.19
Product info last updated on February 11, 2026 1:09am UTC
Category: Bearings, V-belts and Power Transmission Equipment
