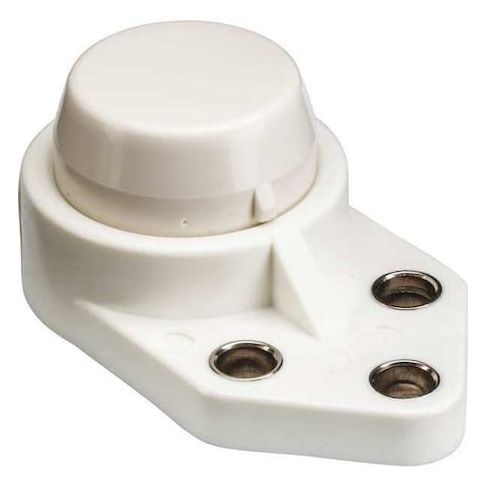

3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Polymer, Set Screw MPN:SUCFBL204-12CCFG1
3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Polymer, Set Screw
This 3-bolt flange bearing from NTN is designed for heavy-duty applications in the food and beverage industry, where reliability and sanitation are paramount. The stainless steel bearing insert and FDA/USDA-H1 solid grease ensure optimal performance in harsh environments. With a maximum temperature rating of 250°F and a minimum temperature rating of -4°F, this bearing can withstand extreme temperatures. Its fixed expansion type and double-sealed closure prevent contamination and maintain precision. Suitable for use in equipment such as pumps, mixers, and conveyor systems, this bearing provides long-lasting reliability and minimizes downtime. Its compact design fits easily into tight spaces.
Top product features:
- The bearing is double sealed for protection against contaminants.
- The bearing has a stainless steel insert for resistance to corrosion.
- The bearing is designed for use in food and beverage environments and meets FDA/USDA-H1 standards.
Top product applications:
- Food processing machinery
- Brewery equipment
- Winemaking machinery
3 Bolt Flange Bearing, Back Side to Center Width 0.606 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 3 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.30
- Package Height: 1.70
- Package Weight: 0.60
Product info last updated on January 31, 2026 8:41am UTC
Category: Bearings, V-belts and Power Transmission Equipment
