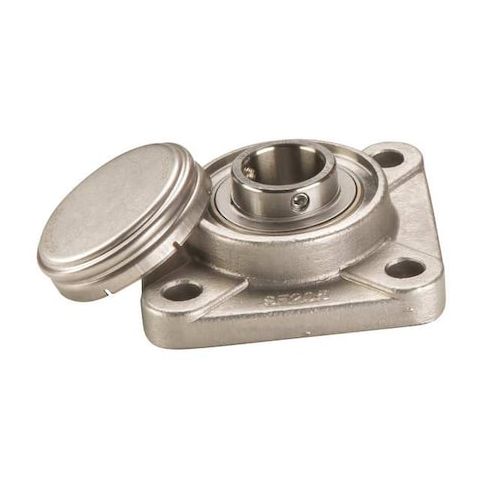

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Stainless Steel, Set Screw MPN:SUCF206-20CCFG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Stainless Steel, Set Screw
This 4-bolt flange bearing from NTN is a reliable solution for heavy-duty applications in harsh environments. Its stainless steel housing and insert provide exceptional corrosion resistance and durability, making it suitable for use in food processing, pharmaceutical, and chemical industries. The double-sealed design ensures long-lasting performance and protection from contaminants. With a maximum speed of 4,300 RPM and operating temperature range of -20°F to 250°F, this bearing is ideal for use in machinery and equipment in demanding industries such as manufacturing, oil and gas, and power generation. Its compact design also makes it suitable for use in tight spaces.
Top product features:
- Fixed Housing Type Square
- Double Sealed Closure
- FDA/USDA-H1 Solid Grease Lubrication
Top product applications:
- Pump and motor mounting
- Gearbox applications
- High-speed conveyor systems
4 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC206-20FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.60
- Package Height: 2.30
- Package Weight: 2.49
Product info last updated on April 10, 2026 9:01pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
