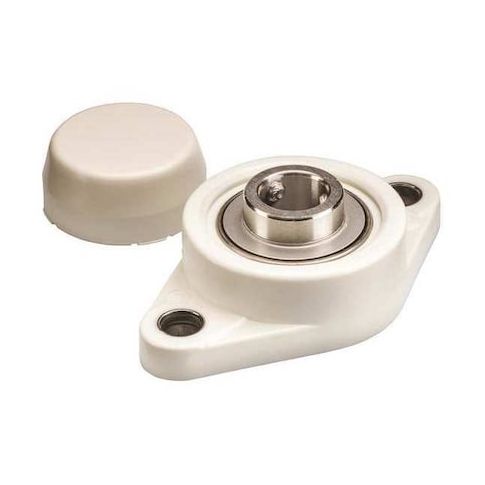

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw MPN:SUCNFL206-20CCFG1
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw
This 2-bolt flange bearing features a stainless steel radial ball bearing insert and a polymer housing for high-performance and corrosion resistance. Its double-sealed design provides long-lasting protection against dust and moisture, while the FDA/USDA-H1 solid grease ensures compliance with food and pharmaceutical industry standards. Ideal for applications in food processing, pharmaceuticals, and other high-humidity environments, this bearing can withstand temperatures from -4°F to 250°F and speeds up to 4,300 RPM. Its compact rhombus housing allows for easy installation and integration into tight spaces, making it a versatile solution for various industrial and commercial applications.
Top product features:
- Double sealed closure to protect against contamination and dust
- Radial ball bearing insert for smooth rotation and reduced friction
- FDA/USDA-H1 solid grease lubricant for food-grade and sanitary applications
Top product applications:
- Food Processing Machinery
- Chemical Processing Machinery
- Power Generation Equipment
2 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 3 9/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.30
- Package Height: 2.70
- Package Weight: 1.11
Product info last updated on January 31, 2026 3:21am UTC
Category: Bearings, V-belts and Power Transmission Equipment
