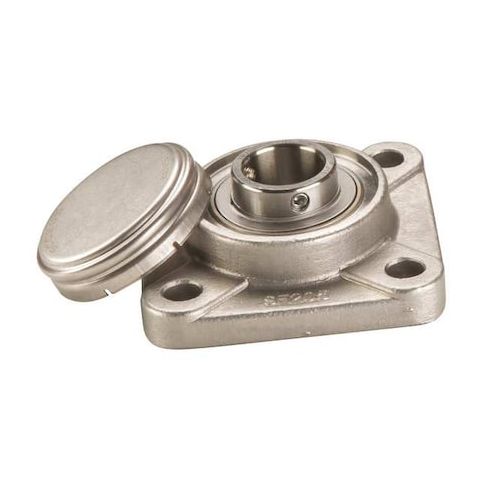

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw MPN:SUCF205-16CCFG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw
This 4-Bolt Flange Bearing from NTN is a reliable solution for heavy-duty applications where precision and durability are crucial. With its stainless steel construction and radial ball bearing design, it provides smooth operation and resistance to corrosion. Suitable for use in food processing, pharmaceutical, and other sanitary environments, this bearing is double sealed for maximum protection. It can withstand extreme temperatures and high speeds, making it ideal for use in machinery and equipment where reliability is paramount. Its compact design and easy mounting make it a versatile choice for a wide range of industrial applications.
Top product features:
- Double sealed closure for protection against contaminants and moisture
- Fixed expansion type for secure and consistent fit in applications
- Radial ball bearing insert for smooth and quiet operation in high-speed applications
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pumps and Compressors
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 4.20
- Package Height: 2.60
- Package Weight: 1.86
Product info last updated on January 31, 2026 3:52am UTC
Category: Bearings, V-belts and Power Transmission Equipment
