Flange Bearing, 4-Bolt, 1-7/16" Bore, SS/SS MPN:SUCF207-23CCFG1
Flange Bearing, 4-Bolt, 1-7/16" Bore, SS/SS

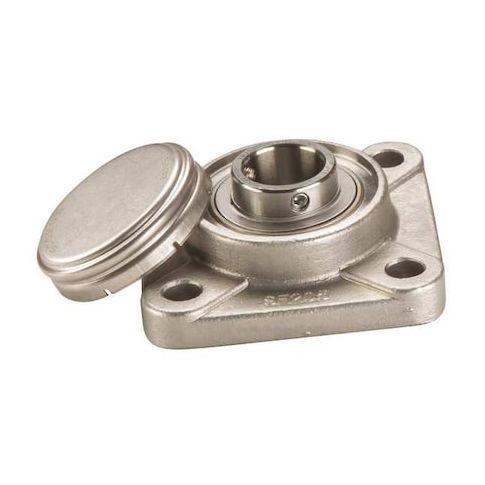

The NTN 4-Bolt Flange Bearing is a reliable and durable solution for high-speed applications. Its stainless steel construction and double sealed closure ensure long-lasting performance in harsh environments. Suitable for use in food processing, pharmaceutical, and other sanitary equipment, this bearing provides smooth operation and minimal maintenance. With a maximum speed of 3,700 RPM and a temperature range of -20 to 250°F, it can handle demanding conditions. Its compact design and fixed expansion type make it ideal for applications where space is limited, such as in machinery, pumps, and gearboxes.
Top product features:
- Double Sealed Closure provides protection from environmental contaminants and debris.
- Stainless Steel Housing and Bearing Insert provide resistance to corrosion and wear in harsh environments.
- FDA/USDA-H1 Solid Grease Lubrication meets food-grade and sanitary standards for applications in the food processing and pharmaceutical industries.
Top product applications:
- Food Processing Equipment
- Pump and Compressor Shafts
- High-Speed Machinery
4 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC207-23FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 5/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.20
- Package Height: 3.50
- Package Weight: 3.42
