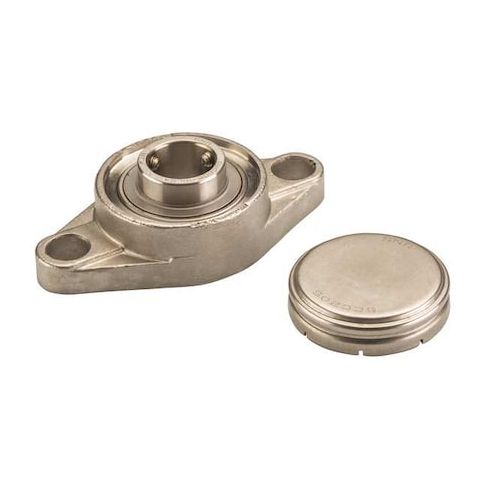

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL205-16CCFG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw Locking
This 2-Bolt Flange Bearing is a high-performance solution for applications requiring precision and reliability. Featuring a stainless steel housing and insert, it provides exceptional corrosion resistance and durability. The double-sealed design ensures long-lasting lubrication and protection from contaminants. With a maximum speed of 5,100 RPM and temperature range of -0°F to 212°F, it can handle demanding industrial and commercial applications, including food processing, pharmaceutical, and chemical manufacturing. Its compact design and fixed expansion type make it ideal for tight spaces and precise mounting requirements.
Top product features:
- 2-Bolt design for easy installation and adjustment
- Double sealed closure for protection against contaminants and moisture
- FDA/USDA-H1 solid grease for lubrication in food and pharmaceutical applications
Top product applications:
- Food Processing Equipment
- Pumps and Compressors
- Power Generation Equipment
2 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 3 57/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.30
- Package Height: 2.70
- Package Weight: 1.48
Product info last updated on March 10, 2026 4:34pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
