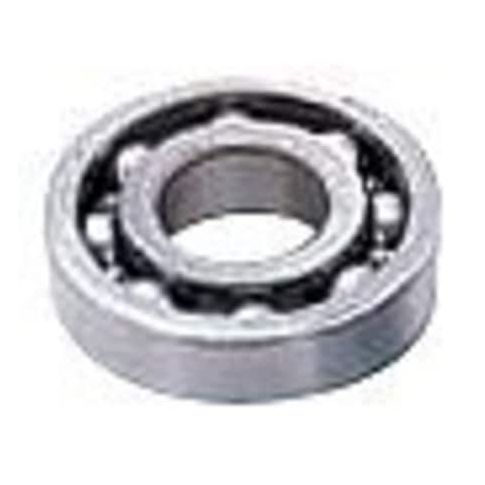

Deep Groove Radial Ball Bearing, 6201 Industry Number, Open Closure, 12 mm Bore Dia, Alloy Steel MPN:6201C3
Deep Groove Radial Ball Bearing, 6201 Industry Number, Open Closure, 12 mm Bore Dia, Alloy Steel
This NTN Radial Ball Bearing is a high-quality, open-bearing solution for a wide range of applications. With a 12mm bore diameter and 32mm outside diameter, it provides a reliable and smooth rotation in demanding environments. The bearing's alloy steel construction and chrome-plated finish ensure durability and resistance to wear. Suitable for use in industrial machinery, automotive systems, and other heavy-duty equipment, this bearing provides a dynamic radial load capacity of 6,750 N. Its compact size and lightweight design make it an ideal choice for space-constrained applications, while its ABEC 1 rating ensures precise operation and long lifespan.
Top product features:
- Radial load capacity of 6,750 N
- Dynamic radial load capacity is supported by the bearing's design
- Fillet radius of 0.6 mm reduces stress concentrations and improves durability
Top product applications:
- Automotive Wheel Bearings
- Industrial Machinery
- Medical Equipment
Radial Ball Bearing, Bearing Industry Number 6201, Bore Diameter 12 mm, Closure Open, Outer Ring Width 10 mm, Outside Diameter 32 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.008 mm, Cage Type Pressed, Dynamic Radial Load Capacity 6,750 N, Fillet Radius 0.6 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material Not Available
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.30
- Package Height: 1.40
- Package Weight: 0.08
