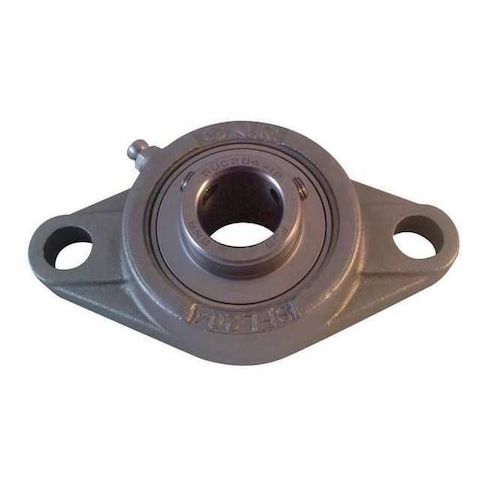

Flange Bearing, 2-Bolt, Ball, 1-7/16" Bore MPN:SUCFL207-23
Flange Bearing, 2-Bolt, Ball, 1-7/16" Bore
The NTN 2-Bolt Flange Bearing is a high-performance solution for applications requiring radial ball bearings in harsh environments. With a stainless steel housing and FDA/USDA-H1 solid grease lubricant, this bearing is ideal for use in food processing, pharmaceutical, and other sanitary industries. Its double-sealed design and fixed expansion type ensure reliable operation and long lifespan. The bearing's rhombus housing provides a compact footprint, making it suitable for use in tight spaces. With a maximum speed of 3,700 RPM and temperature range of -14°F to 212°F, this bearing is suitable for a wide range of applications, including pumps, mixers, and conveyor systems.
Top product features:
- Double sealed closure to prevent contamination and maintain bearing performance
- Fixed expansion type to ensure consistent bearing alignment and prevent vibration
- FDA/USDA-H1 solid grease lubricant to meet sanitary standards and minimize maintenance
Top product applications:
- Food Processing Equipment
- Pump and Compressor Shafts
- Conveyor Systems
2 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC207-23, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 1/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 4.10
- Package Height: 2.50
- Package Weight: 2.51
Product info last updated on February 1, 2026 10:57am UTC
Category: Bearings, V-belts and Power Transmission Equipment
