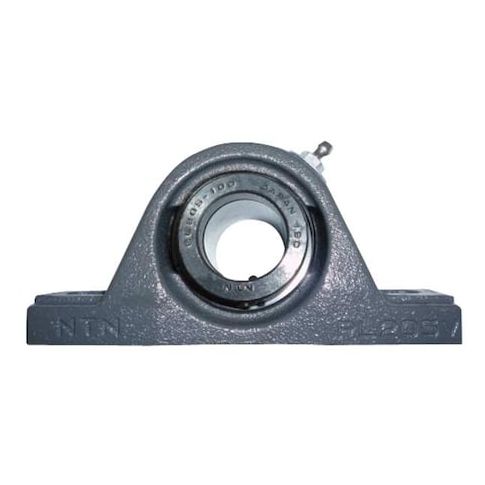

Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 1-3/8 in Dia, Alloy Steel Insert Material MPN:UELPL-1.3/8M
Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 1-3/8 in Dia, Alloy Steel Insert Material
The NTN Pillow Block Bearing is a versatile and reliable solution for various industrial applications. Designed for radial ball bearing insert type, it features a cylindrical bore diameter of 1 3/8 inches and a maximum speed of 4,200 RPM. With a temperature range of -40 to 250 degrees F, it can withstand extreme conditions. The bearing is made of alloy steel and housed in a cast iron structure, ensuring durability and stability. Suitable for use in machinery, equipment, and heavy-duty machinery, this bearing provides smooth operation and reduces wear and tear, increasing overall efficiency and productivity.
Top product features:
- Pillow Block Bearing is designed to accommodate a 1 3/8in cylindrical bore.
- The bearing insert is made of alloy steel for durability and strength.
- The bearing housing is made of cast iron for resistance to wear and corrosion.
Top product applications:
- Machine Tool Spindles
- Conveyor Systems
- Gearboxes
Pillow Block Bearing, Base Height 0.72 in, Base Width 1.874 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/8 in, Bore Type Cylindrical, Center Height 1 51/64 in, Closure Open, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 5 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 2.10
- Package Height: 7.00
- Package Weight: 4.24
Product info last updated on February 1, 2026 4:38am UTC
Category: Bearings, V-belts and Power Transmission Equipment
